RH136 RH138 PC Cover street ligh

RH136 RH138 PC Cover street ligh

Main Function：

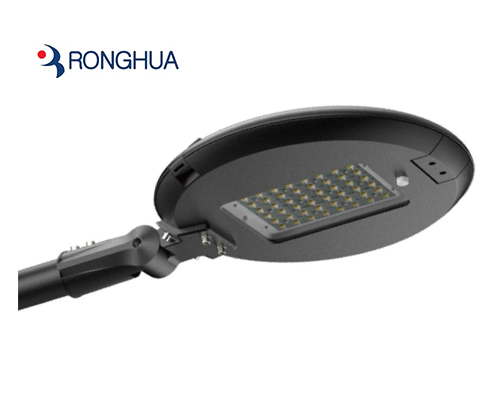

Item: RH-MOON STAR LED Street Light Fixture
Die-casting Aluminum body Good design for LED chips housing
LED Power from 50w, 80w...150w
Diameter: 490mm .
Material: Die-casting aluminum body，glass cover.
Operating Voltage: AC 100-240V , 50/60Hz
LED Luminous Efficiency: 100-160Lm / W
Power Factor: >0.90;
Color Temperature: 2700K _ 6500K
IP Rating: IP66; IK08.
Pole holder size: 60mm

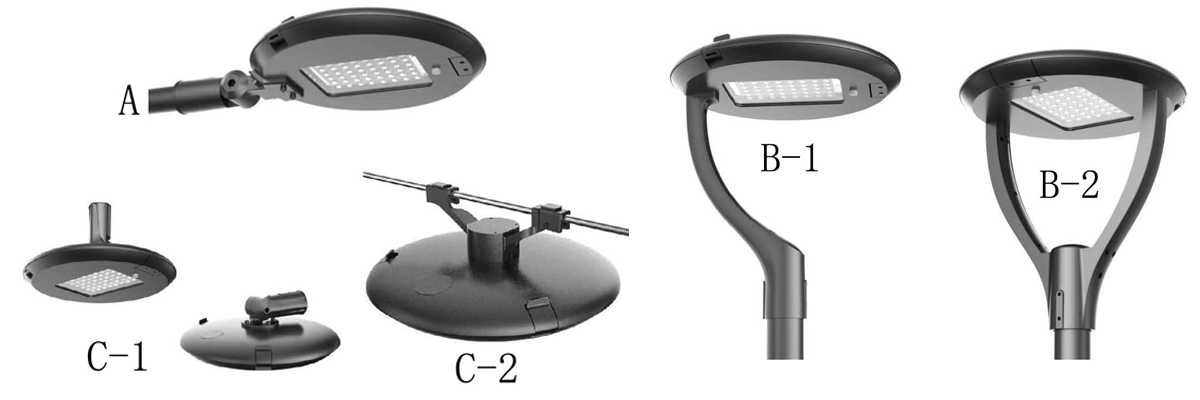

Pole holder can be in Vertical & Horizontal install,adjust angle 15.
Body Color: Black / Gray， 5-Year Warranty
we can supply in SKD spare parts to you.
OEM are welcome

Products details

Features:

High Pressure Die-casting  Aluminum housing, Good Design.
PC lens to meet different optics requirement. TYPE I ，II， III.
AKZO Anti-UV Polyster Powder coated painting body.
Super white tempered glass, white Nano Reflector, Silicon Gasket.
Light Body in 2 size for your choice for LED power design.
High quality SMD LED chips, Driver,10Kv / 20Kv SPD.
IP66 waterproof. Stainless steel cliper for tool free maintenance.
Photocell, smart controller, Nema/Zhaga Scoket, cutoff connector is availabe.
5 year warranty
Housing parts and SKD parts can supply.

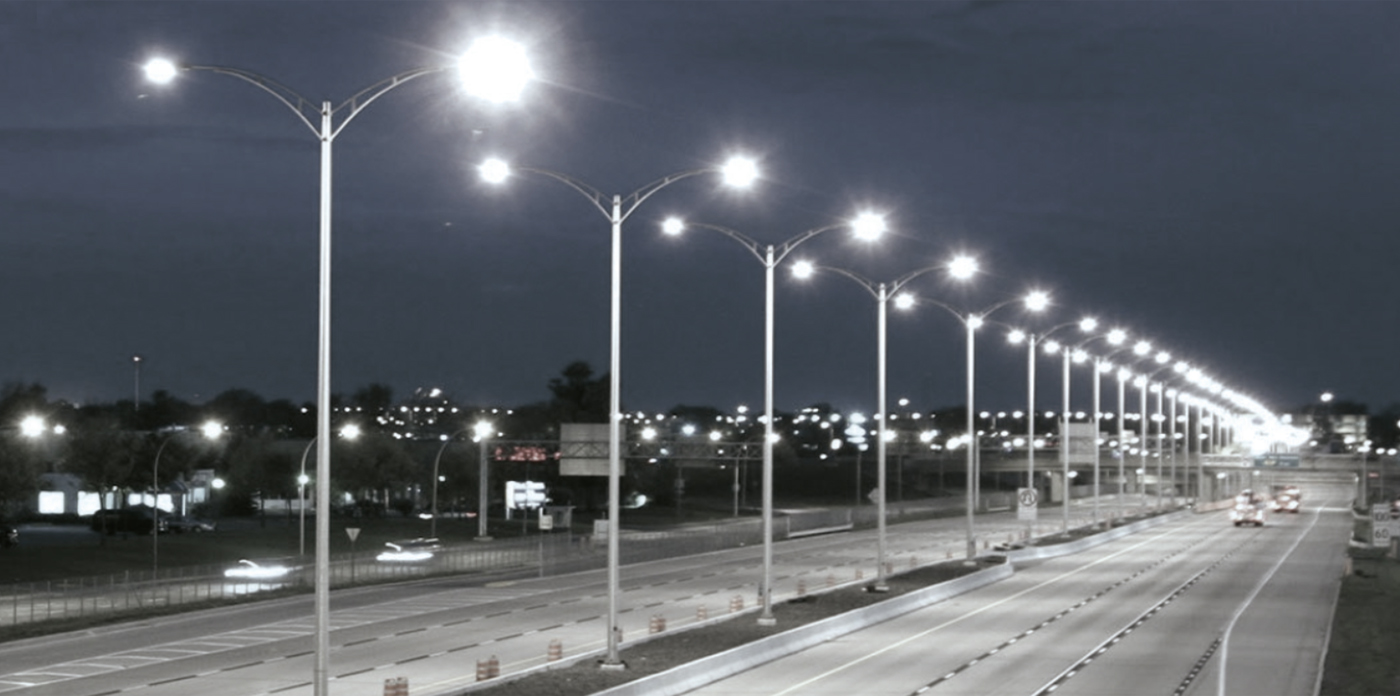

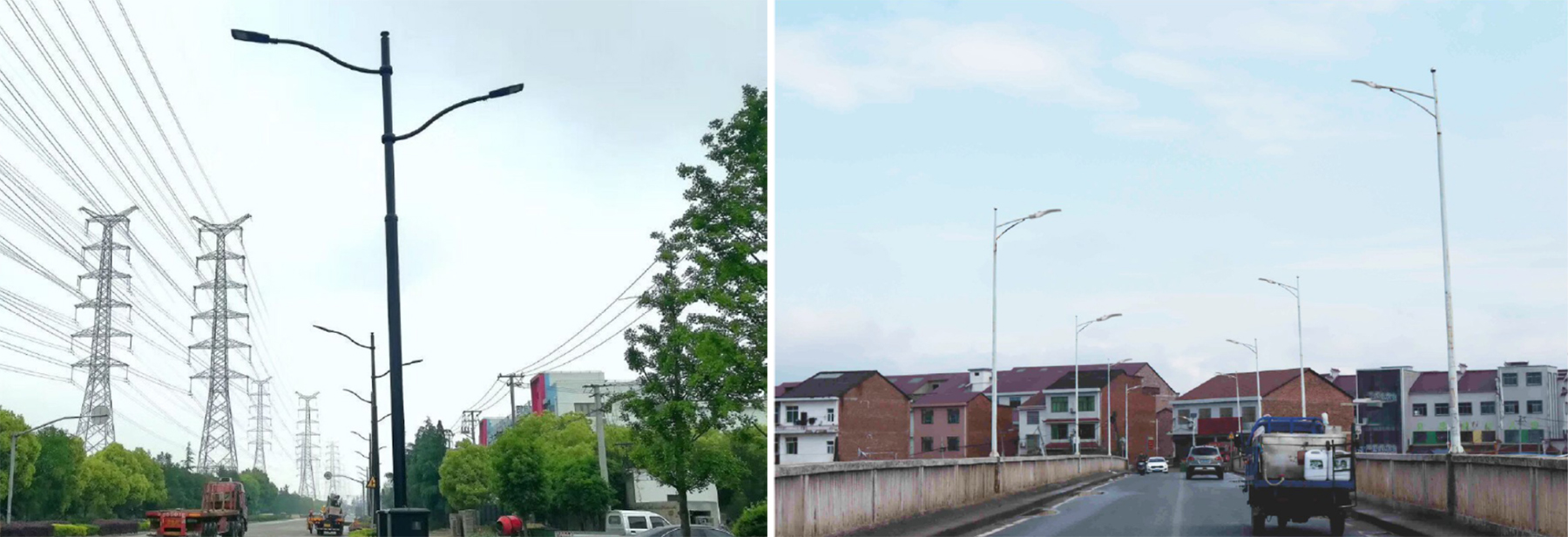

Application：



Technical support:
Email information to us the Project/Bidding Length,Width, Height and Usage.



our engineer to respond the DIALUX simulations for Lights quantity calculation and effects.
IES files are available upon request.

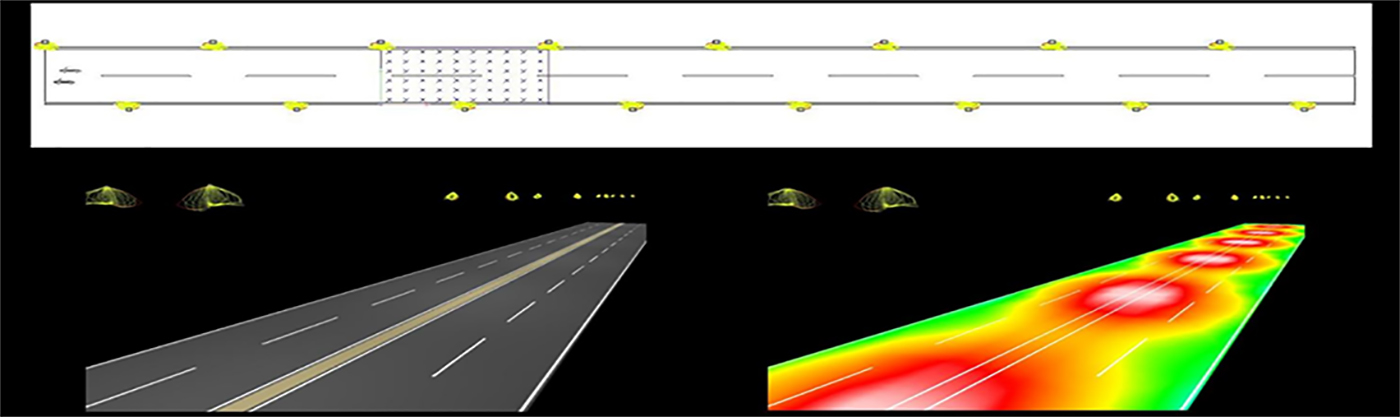

For example of Cross installation effect o both sides of the Road：

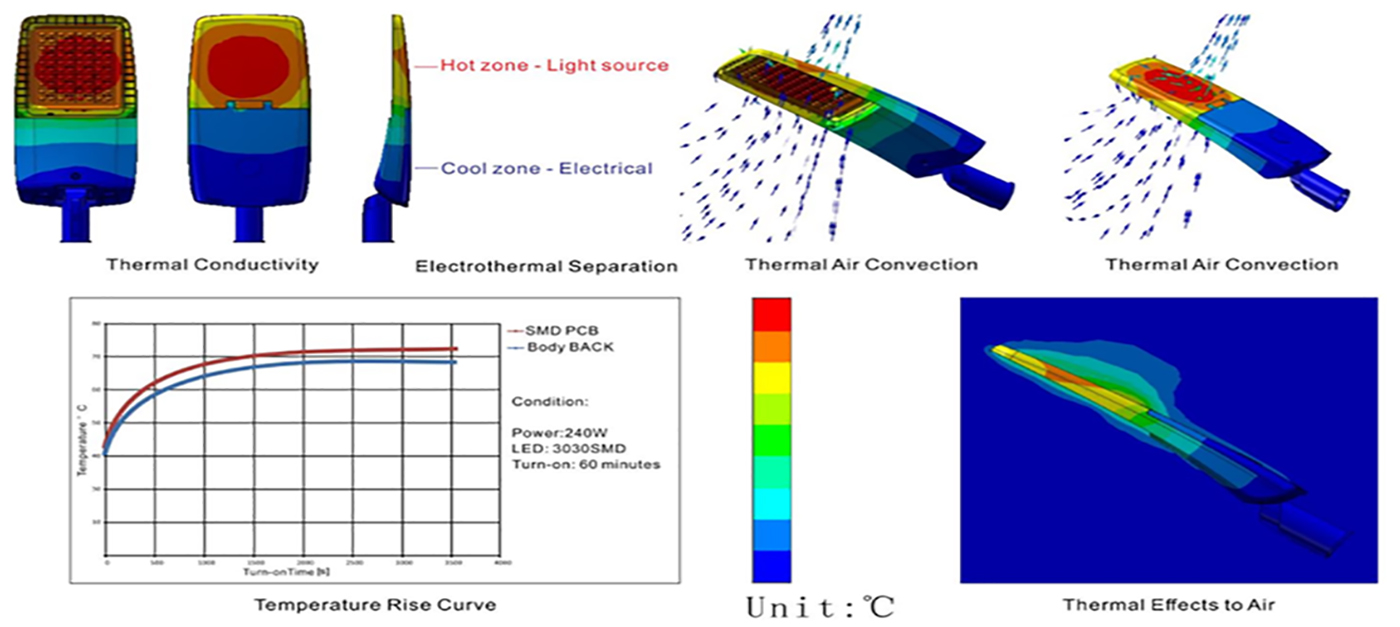

Thermal Management:
Structure is optimized by advanced FEA technology, Achieving longer lifespan as best cost efficiency.

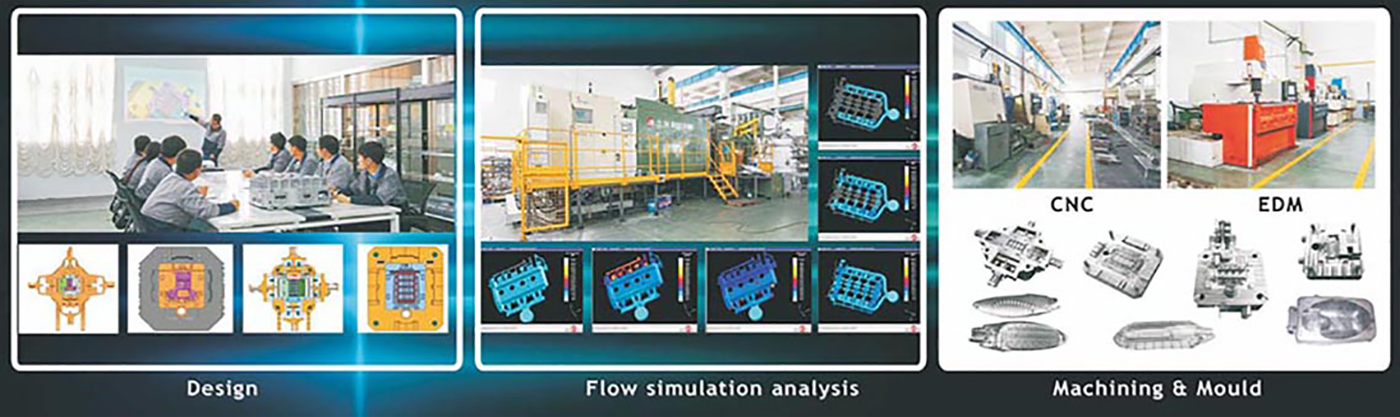

OEM tooling Design :
       we have 20 year OEM Tooling , CNC design, High pressure die-casting aluminum housing.
       we have 15 Sets high pressure die casiting injection machines from 280 Ton to 1350 Ton.
       when get your 3D drawing we can quote price of tooling mould and injection aluminum body costs soon .
