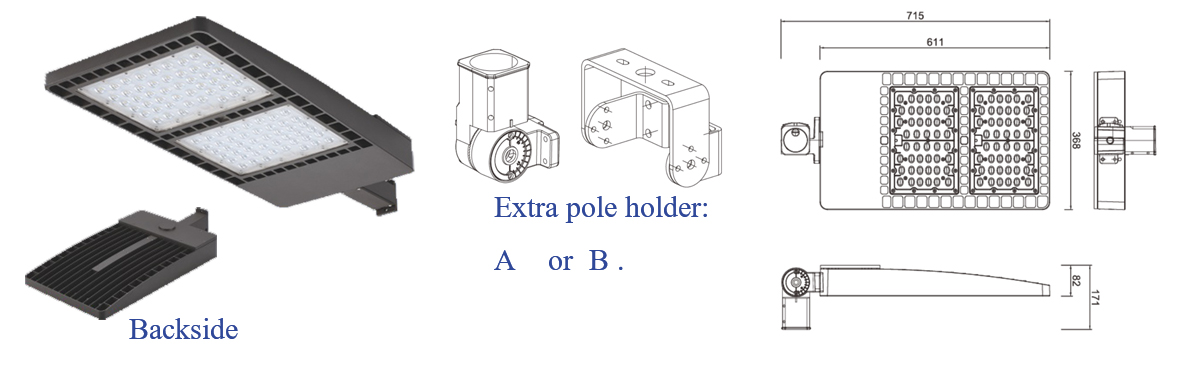

RH6203 LED USA light fixture

RH6203 LED USA light fixture

Main Function：

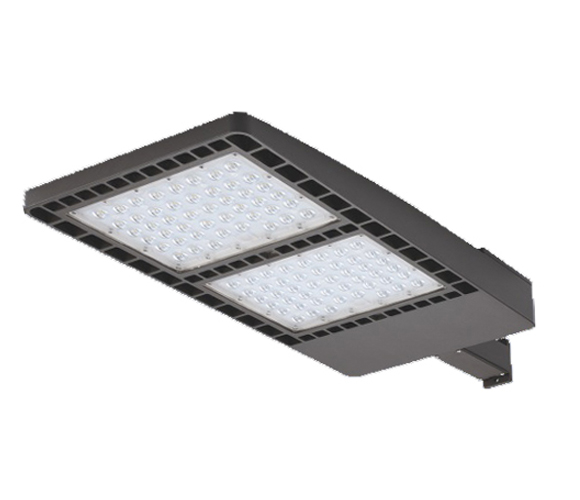

Item: RH6203 LED street light housing Series.
Aluminum body LED street light housing for LED chips housing
LED Power from 2-50w, 2-100w, 2-150w.
Material: Die-casting aluminum body，glass cover.
Operating Voltage: AC 100-240V , 50/60Hz
LED Luminous Efficiency: 100-160Lm / W
Power Factor: >0.90;
Color Temperature: 2700K _ 6500K
IP Rating: IP65; IK08.

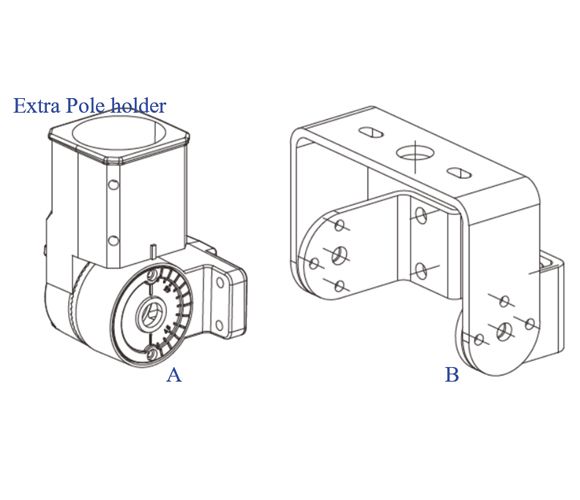

Pole holder size: 60mm
Body Color: Black / Gray， 5-Year Warranty
we can supply in SKD spare parts to you.
OEM are welcome


Products details

Feature:
Die-casting  Aluminum housing, Powder coated painting body surface.
SMD LED chips,chinese power driver, Glass cover,IK08, silicon gasket,
IP65 waterproof. Stainless steel cliper and screws. 5 year warranty
Housing parts and SKD parts can supply.
New Design for USA market, OEM housing is available.

Application：

Technical support:
Email information to us the Project/Bidding Length,Width, Height and Usage.

our engineer to respond the DIALUX simulations for Lights quantity calculation and effects.
IES files are available upon request.
For example of Cross installation effect o both sides of the Road：
Thermal Management:
Structure is optimized by advanced FEA technology, Achieving longer lifespan as best cost efficiency.
OEM tooling Design :
       we have 20 year OEM Tooling , CNC design, High pressure die-casting aluminum housing.
       we have 15 Sets high pressure die casiting injection machines from 280 Ton to 1350 Ton.
       when get your 3D drawing we can quote price of tooling mould and injection aluminum body costs soon .
